The re-ordering and splitting/merging capabilities on the ML10X allows for very flexible routing options. Here is one solution to achieve a Wet-Dry-Wet routing:
The Output is used to send the Dry signal to Amp 1. For the Wet signals, 2 send ports are utilised. If you just required 1 Wet amp, you can just use the Output Ring port without needing to use the the Send/Return ports.

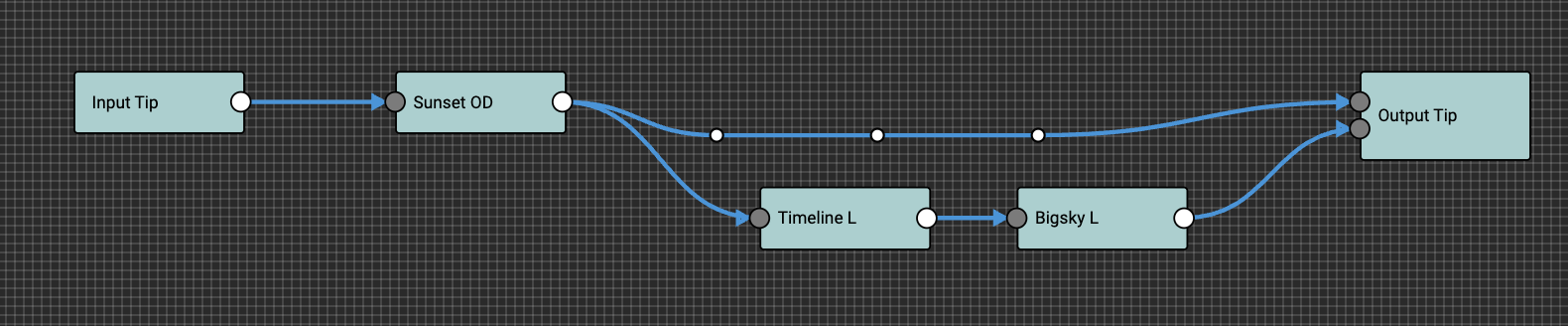

If you want to use just 1 amplifier but run separate Dry/Wet signals and then sum them at the output, you can route it like this:
